Mustang® Moisture Analyzer System
Product Details

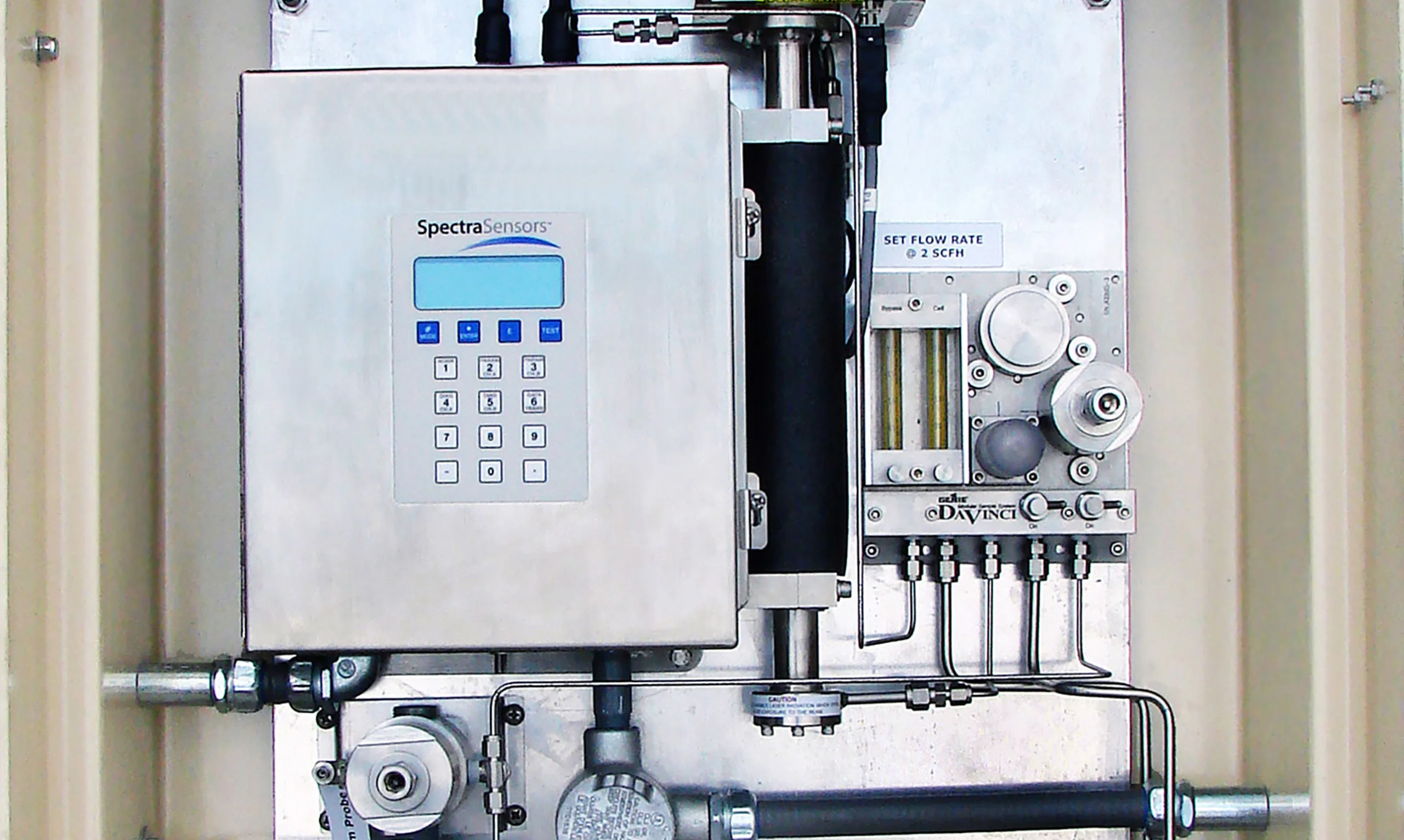

The Mustang Moisture Analyzer System (MMAS™) is the Analytically Accurate® solution for Moisture analysis in Natural Gas Pipelines. The MMAS is a complete package that combines the elements of a Mustang Sample Conditioning System with a close-coupled analyzer in a single cabinet.

The Mustang Moisture Analyzer System can be paired with the Pony® Heated Probe Enclosure on a Natural Gas Pipeline to properly measure moisture content.

Maximum Allowable Operating Pressure
Mustang® P53® Sample Conditioning System 3750 psig (259 bar) at 60ºF (16ºC) MHR™ Single-Stage Regulator 3750 psig (258 bar) MJTHR™ Multi-Stage Regulator 6000 psig (414 bar) MMSCP® 200 psig (14 bar)
Maintains Sample Gas
Standard set point at 120ºF (49ºC) Adjustable from 60ºF to 400ºF (16ºC to 204ºC)
Cabinet Sample Volume
0.51 cu. in.
Wetted Parts
Machined parts: 316 stainless steel/NACE compliant All other metal parts: stainless steel/NACE compliant
Moisture Analyzer Options
SpectraSensors Ametek Zegaz GE Moisture IQ Analyzer
Regulator Options
MHR Single Stage Regulator MJTHR Multi-Stage Regulator
Input Supply Voltage Options
115 VAC 240 VAC 24 VDC
Seal Options
Viton® JW Other materials available upon request
Cabinet Construction Options
GRP Glass Fiber Reinforced Polyester SS Stainless Steel
Patented technology utilizing existing power supplied by heat trace tube bundle
Designed to Class 1, Division 2, Group D - analyzer classification determines final rating
Integral moisture analyzer
Integral Mustang® Modular Sample Control Panel (MMSCP®)
NEMA 4X Enclosure
MMAS Drawing
Requires no external power or natural gas for proper operation
Couples with Mustang Pony® Heated Probe Enclosure
All-in-one compact design
Easy maintenance
Mustang Moisture Analzyer System Cut Sheet
